Quality AC 7kw ev charger wall-mounted electric vehicle charging station Manufacturer | iFlowPower1
- Small size,easy to transport - High compatibility - IP Level: IP54 - Over- voltage protection/lightning protection - Certified by authorities (CE,AAA,CSTIS) - Real-time monitor on charging temperature
- OCPP can be configured for foreign versions - Condensening proof and dust proof - Meet the harsh working terrain - Excellent electrical conductivity
- Durable and anticorrosion - Easy to bend,Long service life - High resistance to cold /high temperature

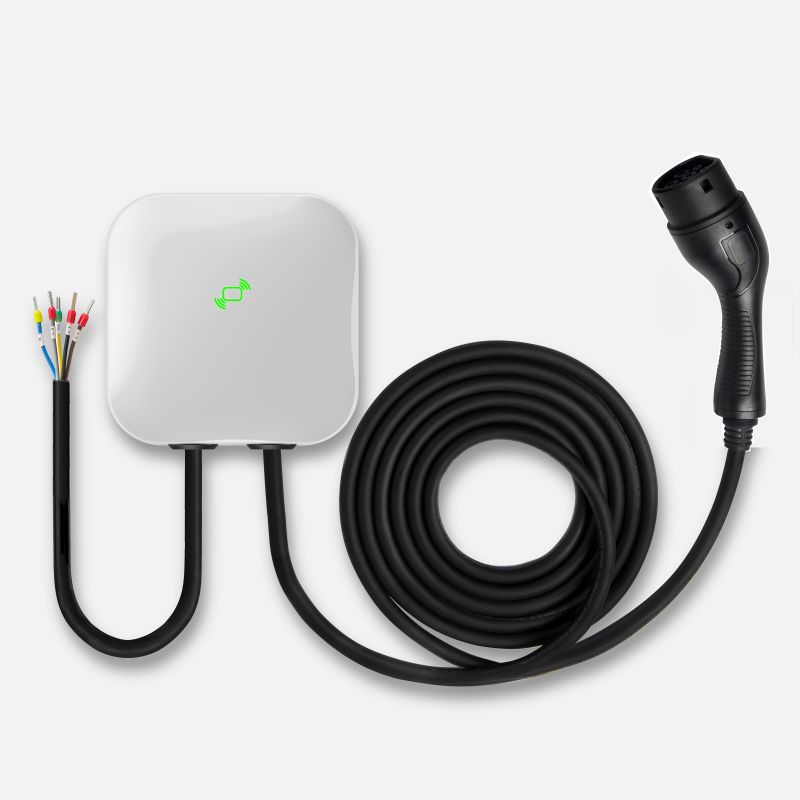

As a basic wall-mount charger, our device is made up of monitoring module, power module, lightning protection unit, intelligent and friendly interface and so on, which is easy to install,stable in performance, stable in protection mechanisms and can be customized according to vehicle BMS parameters.
- Home version: It can be configured with plug and charge, swipe card and password, can charge by appointment.
- Online version: swipe card, VIN code, scan code of wechat and Alipay, mobile APP, mini program, etc.
- OCPP can be configuared for foreign version.
- Unique patented technology, which can meet the high protection level for outdoor use.
- Heat dissipation more efficient and product performance is more stable and reliable.
- Fashionable patented appearance design, small and thin products.
- Can be used for home or business.
- Modular charging speed, 0.5~2C, ideal charging choice that takes into account charging speed and battery life.
- Can be wall hanging and column, flexible application situation.
- Simple and convenient installation, small impact on the power grid.
- Protection grade up to Ip54, moisture-proof, water-proof, condensening proof, dust proof and flame retardant.
- With over and under voltage, overload, short circuit, leakage, battery anti-reverse connection and other protection functions.
| Rated power | 7KW | 11KW | 22KW |
| User interface | Indicator light | ||
| Cable routing | Bottom inlet wiring, bottom outlet wiring | ||
| Charging model | Card swipe | ||
| Dimension | 290x180x95mm | ||
| Input voltage | 1 phase; 200-240V | 3 phase; 380-440V | |
| Input frequency | 50/60Hz | ||
| Output voltage | 200-240V | 380-440V | |
| Output current | 32A | 16A | 32A |
| Charging wir length | 3/5/7/10m | ||
| Over-current protection value | ≥110% | ||
| Over-voltage protection value | 270Vac for 1 phase; 465Vac for 3 phase | ||
| Under-voltage protection value | 270Vac for 1 phase; 465Vac for 3 phase | ||
| Over-temperature protection value | 85°C | ||
| Electric leakage protection value | 30mA AC+6mA DC | ||
| PEN protector | Equipped inside(optional) | ||
| Work temperature | -30~50℃ | ||
| Work humidity | -5%~95% non-condensation | ||
| Work altitude | <2000m | ||
| Protection level | IP54 | ||
| Cooling Model | Natural cooling | ||
| MTBF | 50,000 HOURS | ||
- Professional product consultation and introduction are provided to fully match your needs.
- 24-hour customer service team is ready to provide you with consultation and service.
- All customers will get one-on-one service.
- We offer very flexible customization services like OEM/ODM
- OEM includes color, logo, outer packaging, cable length, etc
- ODM includes function setting, new product development, etc.
- We offer a one-year quality guarantee period for our products.
- We have a very professional team to solve all the problems encountered in the process of use, they will be at your service 24 hours.
