Baterai Solar 100Ah 10.24KWh Baterai Lithium 51.2V LiFePO4 Power Wall Mounted Paket Baterai Rumah 1

Baterai Solar 100Ah 10.24KWh Baterai Lithium 51.2V LiFePO4 Power Wall Mounted Paket Baterai Rumah 2

Baterai Solar 100Ah 10.24KWh Baterai Lithium 51.2V LiFePO4 Power Wall Mounted Paket Baterai Rumah 3

Baterai Solar 100Ah 10.24KWh Baterai Lithium 51.2V LiFePO4 Power Wall Mounted Paket Baterai Rumah 4

Baterai Solar 100Ah 10.24KWh Baterai Lithium 51.2V LiFePO4 Power Wall Mounted Paket Baterai Rumah 5

Baterai Solar 100Ah 10.24KWh Baterai Lithium 51.2V LiFePO4 Power Wall Mounted Paket Baterai Rumah 6

Baterai Solar 100Ah 10.24KWh Baterai Lithium 51.2V LiFePO4 Power Wall Mounted Paket Baterai Rumah

Port Komunikasi:

R485/R232/CAN

Ngilangi standar:

50A discharge saiki pancet kanggo 37.5V

Max Discharge:

100A

Max Ngisi Arus:

100A

Suhu pangisian daya:

0~45°

Suhu operasi:

-10~60°

Siklus urip:

5000 kaping (80% DOD)

Impedansi internal:

<= 180mΩ

Tenogo:

10240wh

Nomer model:

FP-HL100A

Kapasitas nominal:

100Ah / 10.24KWh

Tegangan nominal:

51.2V

Arus pengisian standar:

<=9A

Jinis baterei:

LiFePO4

Ukuran:

675*485*190mm (Adjustable)

Bobot:

Kira-kira 92 kg

Discharge cut-off voltase:

40.5(15S)/43.2(16S)

nakoni, nyelidiki

Tulis ulasan

Sistem Panyimpenan Energi iFlowpower

Baterai Solar 100Ah 10.24KWh Baterai Lithium 51.2V LiFePO4 Power Wall Mounted Paket Baterai Rumah 7

Desain Atraktif

Baterei Lithium iFlowPower kanthi desain kompak, tombol setelan sing trep, lan kabel lan aksesoris sing siap dipasang. Lan baterei Lifepo4 bisa diinstal ing podo karo karo kothak combiner kanggo nyedhiyani pangayoman, lan pangayoman komunikasi BMS terpadu sampurna cocog kanggo Sato lan off-grid inverter!

Baterai Solar 100Ah 10.24KWh Baterai Lithium 51.2V LiFePO4 Power Wall Mounted Paket Baterai Rumah 8

Kompatibilitas Wide

seri iFlowPower Lithium lon Power Wal akeh digunakake ing Tata Surya kanggo panggunaan omah lan komersial. Kanthi luwih saka 5000 kaping siklus jero. Desain modular ngidini ekspansi kapan wae. Tembok daya iFlowPower wis entuk persetujuan global.

Baterai Solar 100Ah 10.24KWh Baterai Lithium 51.2V LiFePO4 Power Wall Mounted Paket Baterai Rumah 9

BMS

Sistem manajemen baterei sing dibangun nggabungake fungsi safety multi-level, kalebu overcharge lan proteksi discharge jero, pengamatan voltase lan suhu, proteksi overcurrent, pemantauan lan keseimbangan baterei, lan perlindungan termal.

Baterai Solar 100Ah 10.24KWh Baterai Lithium 51.2V LiFePO4 Power Wall Mounted Paket Baterai Rumah 10

Fitur

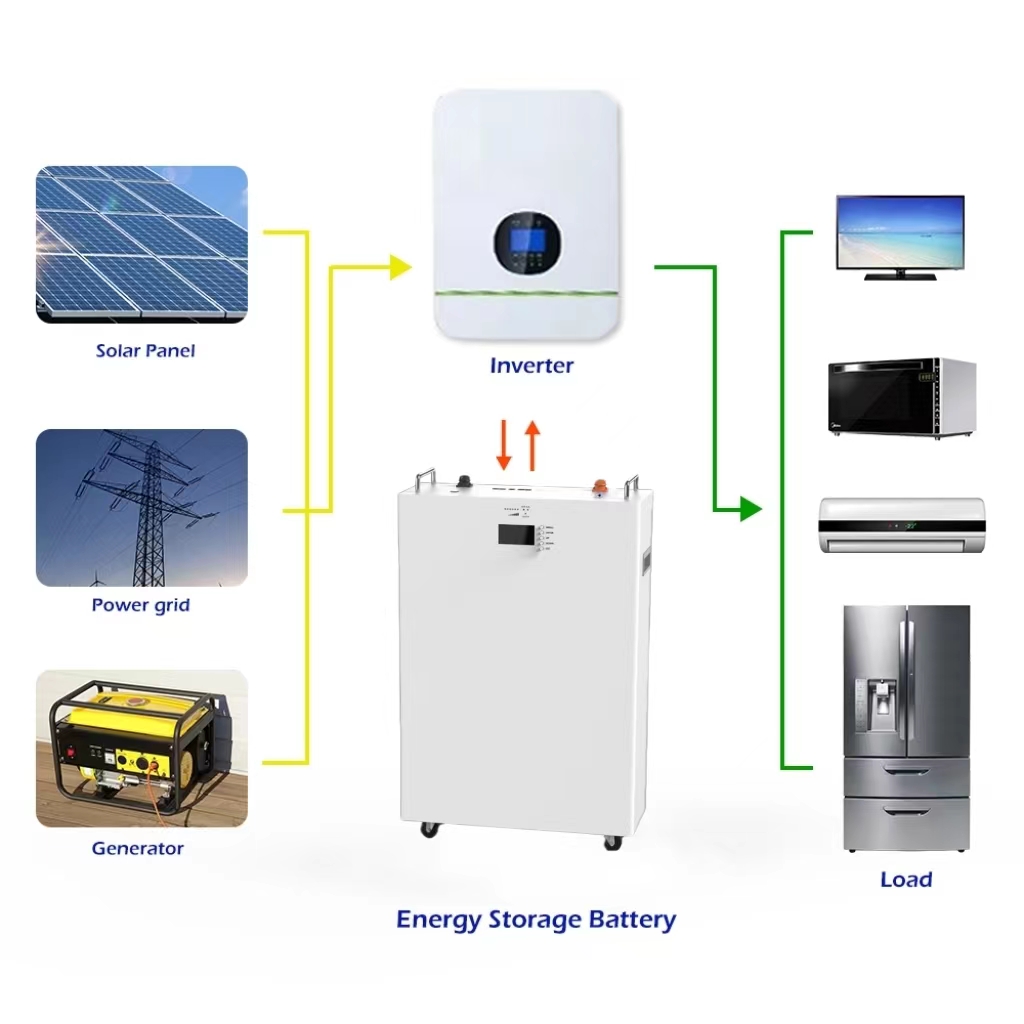

♦ Off grid inverter; On-grid karo panyimpenan energi

♦ Prioritas pangisi daya AC/Solar sing bisa dikonfigurasi liwat setelan LCD

♦ Desain pangisi daya baterei sing cerdas kanggo kinerja baterei sing dioptimalake

♦Kompatibel kanggo voltase utama utawa daya generator

♦ Overload, liwat suhu, pangayoman short circuit, pangayoman voltase kurang

♦ Piranti WIFI eksternal; Operasi paralel nganti 8 unit

PRODUCT APPLICATION

Baterai Solar 100Ah 10.24KWh Baterai Lithium 51.2V LiFePO4 Power Wall Mounted Paket Baterai Rumah 11

Listrik ing omah, mall, supermarket, hotel, lan papan umum liyane.

Model sumber daya	FP-ES-3KW
daya dirating	3KW
Daya puncak	6KW
Tegangan nominal	25.6V
Kapasitas nominal	200Ah / 10.24KWh
Rekomendasi voltase pangisian daya	29.2V
Discharge cut-off voltase	20V
AC Stand pengisian arus	<=9A
Ac Stand discharge saiki	13A
AC Max discharge saiki	25A
urip siklus baterei	>=5000 kaping (80%DOD)
Mode komunikasi	R485/CAN
Suhu pengisian	0°~45°
Suhu operasi	-20°~60°
Bobot baterei	Kira-kira 320 kg
Ukuran baterei	6221701900mm (Adjustable)
